Description

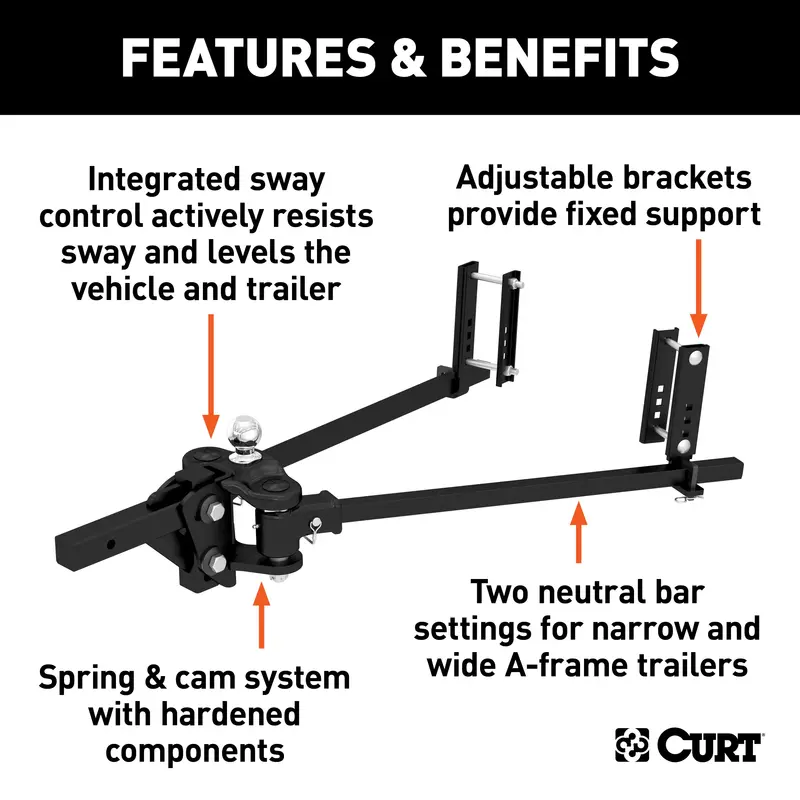

While many weight distribution hitches are made to be compatible with a sway control attachment, the CURT TruTrack is an advanced WD system that integrates the sway control function into the design of the hitch. It combines precise weight distributing with integrated sway control to deliver the smoothest, safest ride possible. The TruTrack features a unique spring and cam system within the hitch head that builds up pressure to actively stop sway and then relaxes to make smooth turns. The hardened cam components are less subject to wear and last longer than competitor models. The TruTrack also features unique spring bars. Like all WD hitches, it uses a pair of spring bars to leverage the trailer tongue weight and spread it across all axles of the vehicle-trailer combination. However, instead of using spring bar chains, the TruTrack connects to the trailer frame using heavy-duty, adjustable support brackets that hold the spring bars in place laterally and vertically. While regular spring bars angle from side to side, the integrated sway control arms resist this movement and keep the trailer better aligned. In addition to its integrated sway control, the CURT TruTrack offers the same great quality as our other WD hitches, making it the perfect choice for campers, livestock trailers and other heavy-duty trailers. We stand behind this uncompromising hitch, and to prove it, we back it up with a limited lifetime warranty.
Resources
Installation Instructions
Specifications:
| Description_ABR | TRACK |
| Description_ASC | 2″ shank can be flipped to provide necessary drop or rise |
| Description_ASC | Adjustable brackets provide fixed support unlike spring bar chain models |
| Description_ASC | Brackets use friction to resist lateral movement, replacing a sway control |
| Description_ASC | Carbide black powder coat, black-oxide-plated cams and stainless steel balls |
| Description_ASC | Fits virtually all A-frame trailers, featuring two neutral spring bar settings |
| Description_ASC | Four points of sway control work together to keep trailer aligned |
| Description_ASC | Hex castle nut allows for easy adjustment for different trailers |
| Description_ASC | Includes a pre-torqued 2-5/16″ trailer ball |
| Description_ASC | Integrated sway control actively resists sway and levels the vehicle and trailer |
| Description_ASC | Limited lifetime warranty (one-year finish, one-year parts) |
| Description_ASC | TruTrack 4P Weight Distribution Hitch with 4x Sway Control, 10-15K |
| Description_ASC | Uses spring & cam system with hardened components, instead of friction alone |
| Description_ASC | Welded head with cast pieces and trunnion-style forged steel spring bars |
| Description_ASM | CURT 17501 TruTrack 4P Weight Distribution Hitch with 4x Sway Control, Up to 15K, 2-In Shank, 2-5/16-Inch Ball |
| Description_DEF | Trailer Hitch |
| Description_DES | TruTrack 4P Weight Distribution Hitch with 4x Sway Control, 10-15K |
| Description_DES | TruTrack 4P Weight Distribution Hitch with 4x Sway Control; 10-15K |
| Description_EXT | CURT 17501 TruTrack 4P Weight Distribution Hitch with 4x Sway Control, Up to 15K, 2-In Shank, 2-5/16-Inch Ball |
| Description_EXT | CURT 17501 TruTrack 4P Weight Distribution Hitch with 4x Sway Control; Up to 15K; 2-In Shank; 2-5/16-Inch Ball |
| Description_FAB | 12 In. Adjustable Shank Fits 2 In. X 2 In. Receiver Tube Openings |
| Description_FAB | Backed By A 10-Year Limited Warranty |
| Description_FAB | Brackets Use Friction To Resist Movement Replacing A Sway Control |
| Description_FAB | Cam Springs Build Up Pressure For Integrated Sway Control |
| Description_FAB | Cast Head/Hardened Cams Provide Solid Attach./Resist Wear |
| Description_FAB | Equipped w/Trunnion-Style Forged Steel Spring Bars |
| Description_FAB | Fixed Support Brackets Hold The Spring Bars In Place |
| Description_FAB | Hex Castle Nut Allows For Easy Adjustment For Different Trailers |
| Description_FAB | Incl. A Pre-Torqued 2 5/16 In. Trailer Ball |
| Description_FAB | Protected By A Highly Durable Carbide Powder Coat Finish |
| Description_FAB | Sway Control Resists Sway And Levels The Vehicle And Trailer |
| Description_FAB | Uses Friction To Resist Lateral Movement Replacing A Sway Control |
| Description_INV | TruTrack 4P WD Hitch with Sway Control |
| Description_KEY | base rv lift lb camper weighted friction truck mount holder right dual travel kit parts equal load leveling ez leveler accessories pins pro equalizing tab plate slide weights interchangeable arm stabilizing pin hoist swaybar lifts systems balancing kits |
| Description_MKT | While many weight distribution hitches are made to be compatible with a sway control attachment, the CURT TruTrack is an advanced WD system that integrates the sway control function into the design of the hitch. It combines precise weight distributing with active sway control to deliver the smoothest, safest ride possible. The TruTrack 4P features a unique spring and cam system within the hitch head that builds up pressure to actively stop sway and then relaxes to make smooth turns. The hardened cam components are less subject to wear and last longer than competitor models. The TruTrack also features unique spring bars. Like all WD hitches, it uses a pair of spring bars to leverage the trailer tongue weight and spread it across all axles of the vehicle-trailer combination. However, instead of using spring bar chains, the TruTrack connects to the trailer frame using heavy-duty, adjustable support brackets that hold the spring bars in place laterally and vertically. While regular spring bars angle from side to side, the integrated sway control arms resist this movement and keep the trailer better aligned. In addition to its integrated sway control, the CURT TruTrack offers the same great quality as our other WD hitches, making it the perfect choice for campers, livestock trailers and other heavy-duty trailers. We stand behind this uncompromising hitch, and to prove it, we back it up with a limited lifetime warranty. |
| Description_MKT | While many weight distribution hitches are made to be compatible with a sway control attachment, the CURT TruTrack is an advanced WD system that integrates the sway control function into the design of the hitch. It combines precise weight distributing with integrated sway control to deliver the smoothest, safest ride possible. The TruTrack features a unique spring and cam system within the hitch head that builds up pressure to actively stop sway and then relaxes to make smooth turns. The hardened cam components are less subject to wear and last longer than competitor models. The TruTrack also features unique spring bars. Like all WD hitches, it uses a pair of spring bars to leverage the trailer tongue weight and spread it across all axles of the vehicle-trailer combination. However, instead of using spring bar chains, the TruTrack connects to the trailer frame using heavy-duty, adjustable support brackets that hold the spring bars in place laterally and vertically. While regular spring bars angle from side to side, the integrated sway control arms resist this movement and keep the trailer better aligned. In addition to its integrated sway control, the CURT TruTrack offers the same great quality as our other WD hitches, making it the perfect choice for campers, livestock trailers and other heavy-duty trailers. We stand behind this uncompromising hitch, and to prove it, we back it up with a limited lifetime warranty. |
| Description_SHO | TruTrack 4P WD Hitch |
| Description_SHO | TruTrack 4P Weight D |
| Description_SLA | While many weight distribution hitches are made to be compatible with a sway control attachment, the CURT TruTrack is an advanced WD system that integrates the sway control function into the design of the hitch. It combines precise weight distributing with active sway control to deliver the smoothest, safest ride possible. The TruTrack 4P features a unique spring and cam system within the hitch head that builds up pressure to actively stop sway and then relaxes to make smooth turns. The hardened cam components are less subject to wear and last longer than competitor models. The TruTrack also features unique spring bars. Like all WD hitches, it uses a pair of spring bars to leverage the trailer tongue weight and spread it across all axles of the vehicle-trailer combination. However, instead of using spring bar chains, the TruTrack connects to the trailer frame using heavy-duty, adjustable support brackets that hold the spring bars in place laterally and vertically. While regular spring bars angle from side to side, the integrated sway control arms resist this movement and keep the trailer better aligned. In addition to its integrated sway control, the CURT TruTrack offers the same great quality as our other WD hitches, making it the perfect choice for campers, livestock trailers and other heavy-duty trailers. We stand behind this uncompromising hitch, and to prove it, we back it up with a limited lifetime warranty. |
| height | 11.5 |
| length | 38.0 |
| LTL | N |
| weight | 123.6 |
| width | 13.8 |
